1992 Diamond Back

Reactor

RIDER STYLE
Race

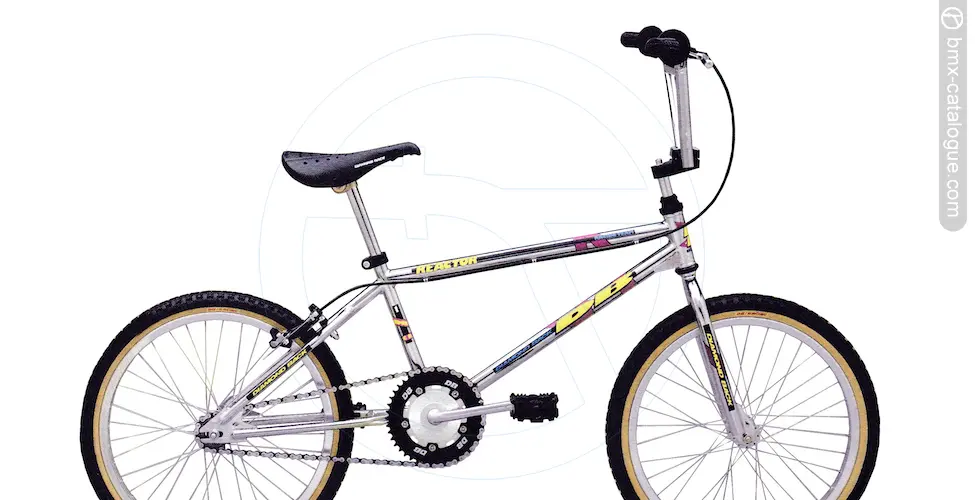

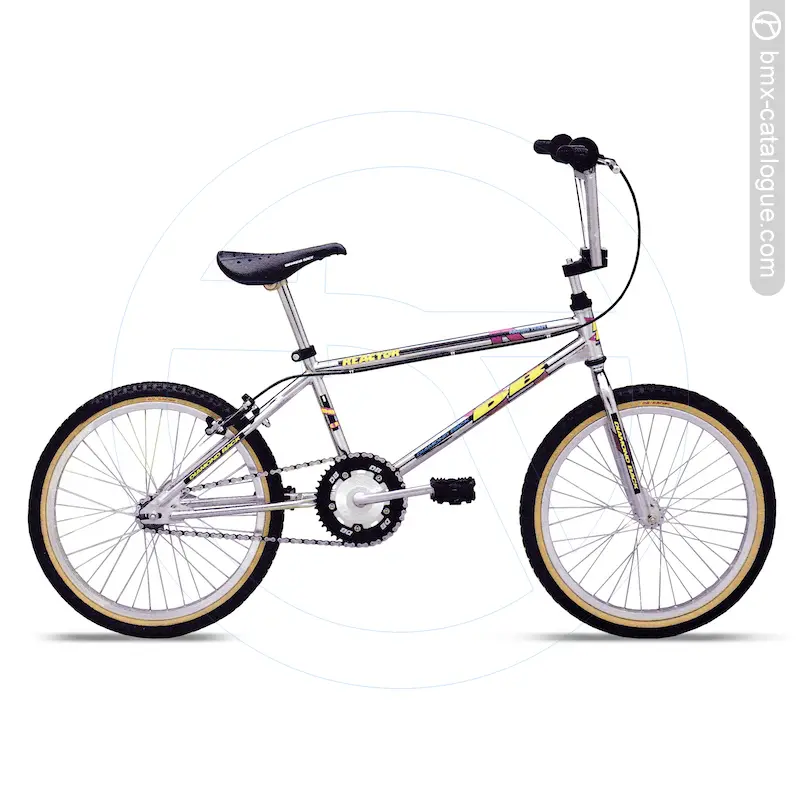

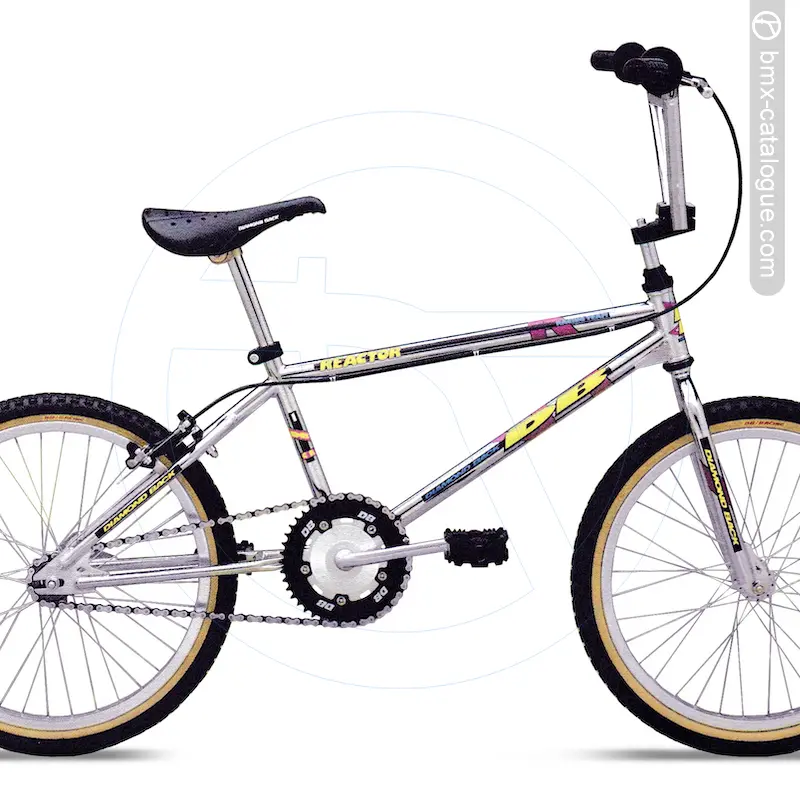

1992 Diamond Back reactor BMX Catalogue

"One of my buddies races down at the Youth Club on a 1992 Diamond Back Reactor, and he whips around on it like it's got a turbo jet pack. I got the 1992 Diamond Back Assault 'cause it looks rad and it has the same geometry as the Reactor, so I know it can rip too. Something as sweet as a new DB can't be wasted sitting around in a garage... I had to ride it. The 1992 Diamond Back Reactor features 100% chromoly tig pulse welded frame and fork. Reactor series racing tires. Alloy rims and hubs.

BMX CATALOGUE
All models
Diamond Back 1992 BMX Catalogue Arrow Icon
1992 Diamond Back
Arrow Icon
All 1992 Models
 Arrow Icon
All Years
 1992 Diamond Back tailwhip BMX Catalogue Arrow Icon
Tailwhip
 1992 Diamond Back riptile BMX Catalogue Arrow Icon
Riptile
 1992 Diamond Back reactor BMX Catalogue Arrow Icon
Reactor
 1992 Diamond Back Assault BMX Catalogue Arrow Icon
Assault
 1992 Diamond Back viper BMX Catalogue Arrow Icon
Viper
 1992 Diamond Back viper 6 BMX Catalogue Arrow Icon
Viper 6
Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
100% CR-MO
100% CR-MO
Reactor Series HT
Alloy 7x Type 36H
Alloy 10mm
PVC CR-MO Spindle
DiaCompe Bulldog
DiaCompe Bulldog
DiaCompe Tech77
DB Super Lite
DB Kraton
DB Alloy
DB Race fat/skinny
DB 180 1-pc 43T

Headset Size

1"

Seatpost Size

22.2mm

Top Tube Size

21"

Original Colours

chrome
Serial Number Icon
Serial Number
Format

KW1X000000 KW2Y000000
Made in Taiwan.
Fourth Letter in the serial indicates year of production (1991 or 1992). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).

Bikes made in Taiwan usually had an 8 month production and shipping timeline before they were sold in bike shops around the world. In May of any year, factories would usually switch production to making models for the following year.
