1998 Diamond Back

Reactor Team

RIDER STYLE
Race

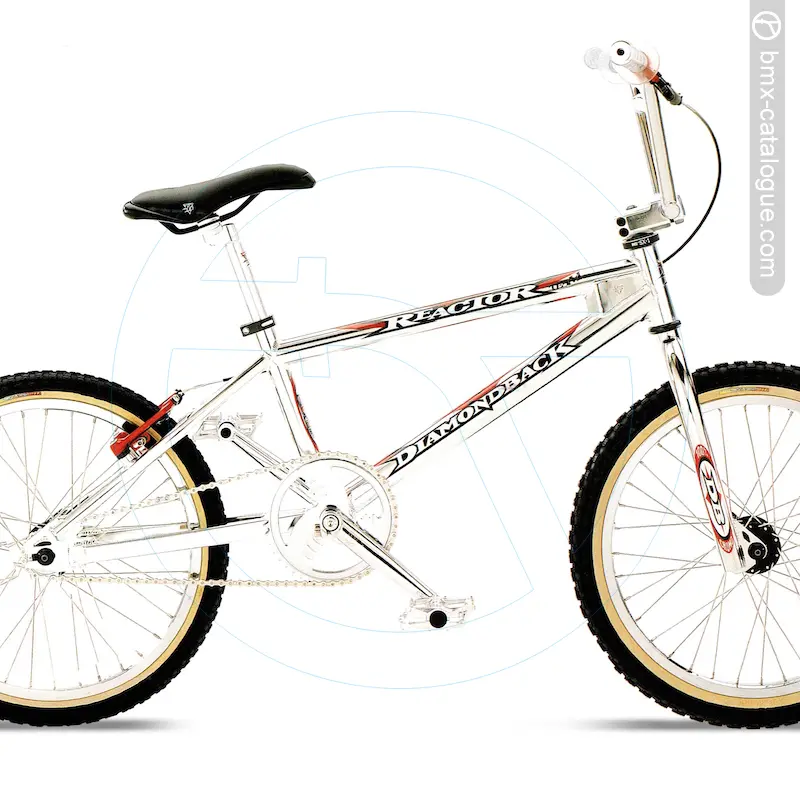

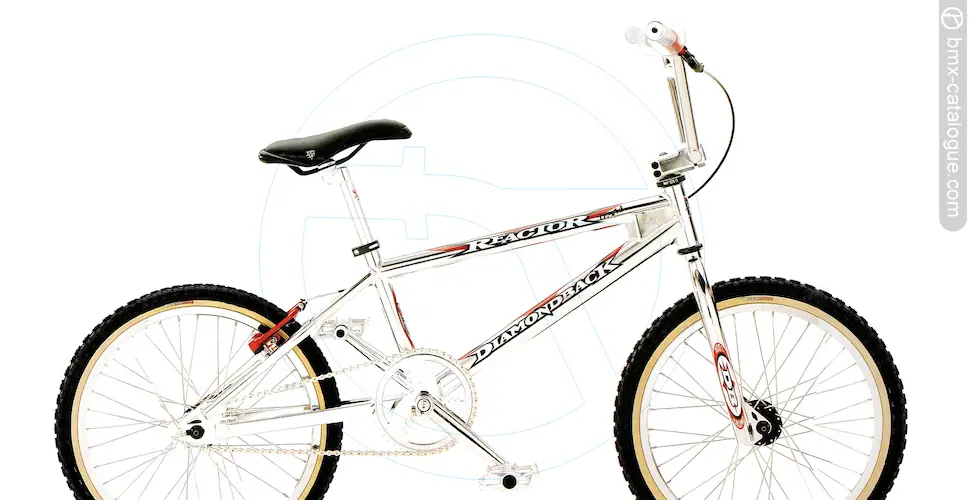

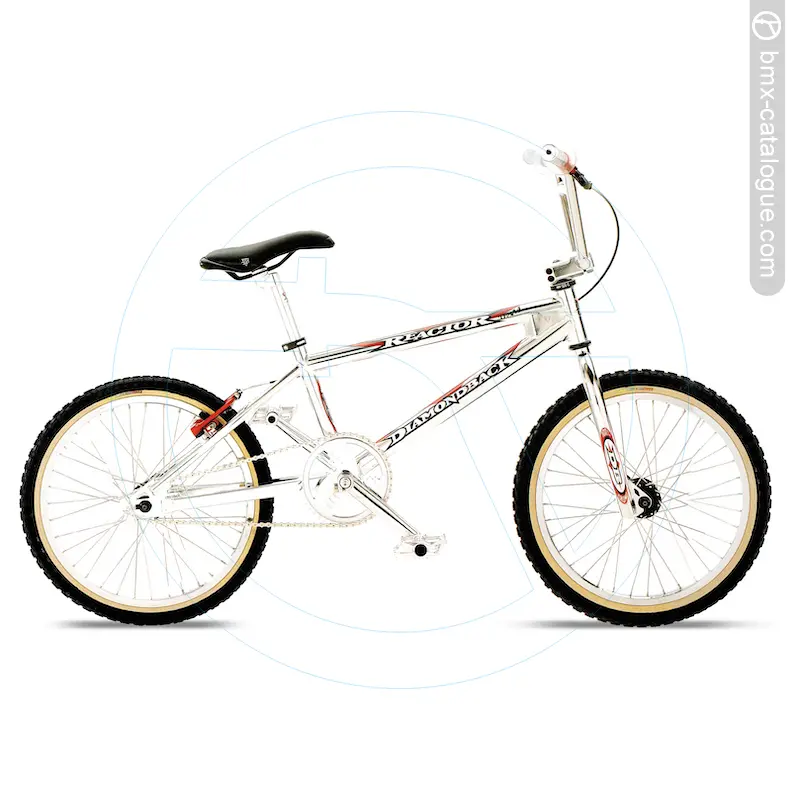

1998 Diamond Back Reactor Team BMX Catalogue

The Diamond Back Reactor Team for 1998 features 7005 frame with double thick dropouts, full CR-MO fork with 1 1/4" blades, 3pc CR-MO 180mm cranks and 8.5" rise chrome handlebar.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
7005 Alloy
100% CR-MO
4pc 8.5" Race
Alex DW 36H
Slasher Alloy
Alloy Platform
None
Shimano DX V
Shimano DX
DB Dropnose
Clear
Alloy Front Load
Tioga Comp III
DB 180 3pc 44T

Headset Size

1 1/8"

Seatpost Size

27.0

Top Tube Size

Unknown

Original Colours

ball-burnished
Serial Number Icon
Serial Number
Format

XXXX000000 YYYY000000
Made in Taiwan.
Serial information is currently being researched and checked. XXXX letter in the serial indicates year of production (1997 or 1998). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).

Bikes made in Taiwan usually had an 8 month production and shipping timeline before they were sold in bike shops around the world. In May of any year, factories would usually switch production to making models for the following year.
