1998 Diamond Back

Viper

RIDER STYLE
Dirt

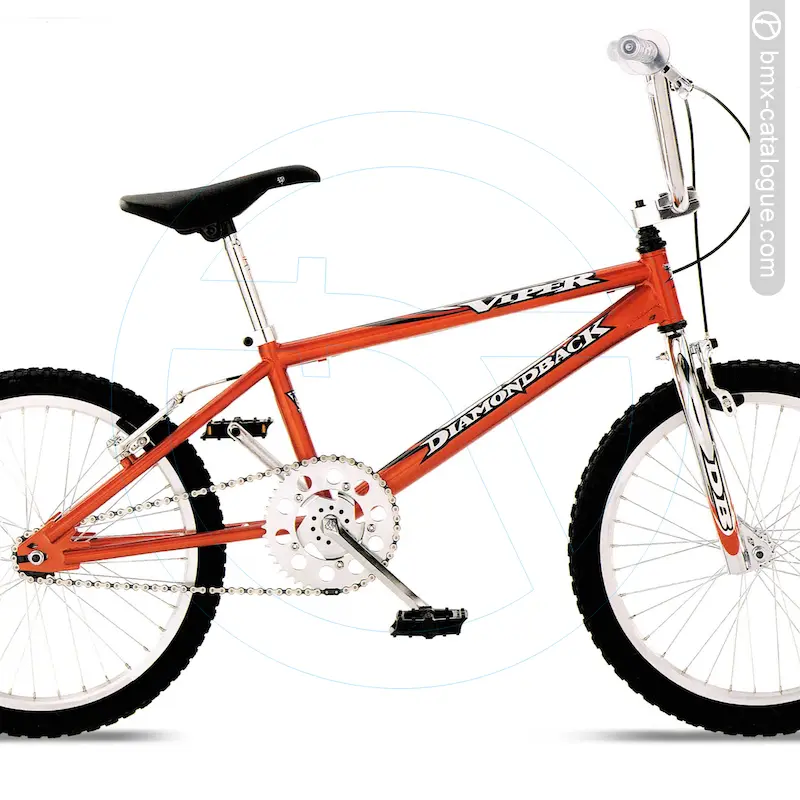

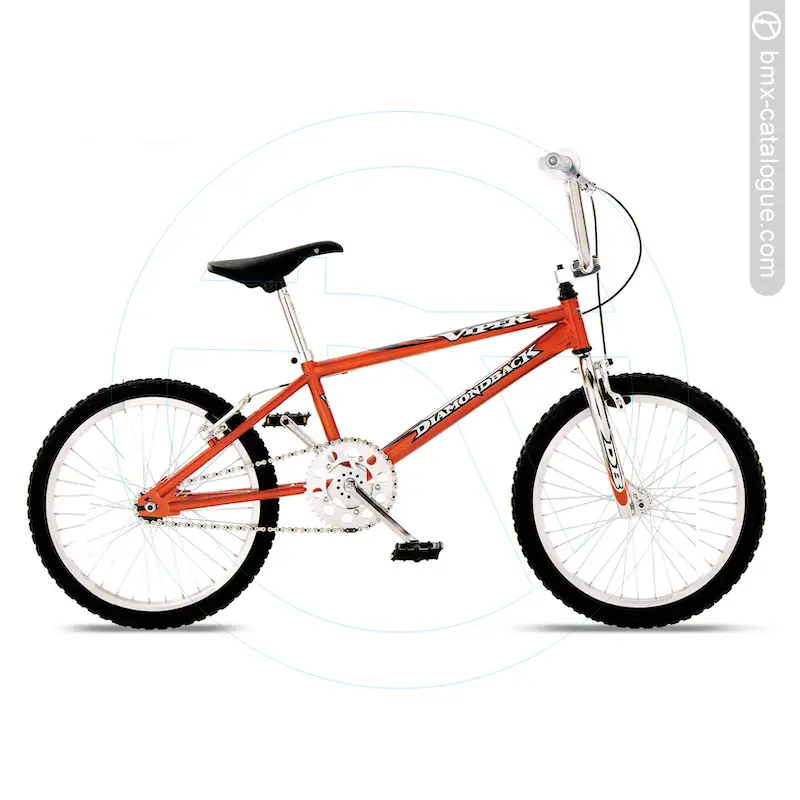

1998 Diamond Back Viper BMX Catalogue

The 1998 Diamond Back Viper features CR-MO main frame, full HI-TEN fork with 1 1/4" blades and 8.5" rise chrome handlebar. 175mm 1 piece crank.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
CR-MO Mainframe
HI-TEN
2pc 8.5" Race
Alloy 36H
Alloy 10mm
Resin Platform
ProMax Caliper
Pro Max V Brake
Pro Max
Padded Race
Clear
Alloy Top Load
Comp 3 fat/skinny
DB 175 1pc 44T

Headset Size

1"

Seatpost Size

25.4mm

Top Tube Size

Unknown

Original Colours

chrome red blue black
Serial Number Icon
Serial Number
Format

XXXX000000 YYYY000000
Made in Taiwan.
Serial information is currently being researched and checked. XXXX letter in the serial indicates year of production (1997 or 1998). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).

Bikes made in Taiwan usually had an 8 month production and shipping timeline before they were sold in bike shops around the world. In May of any year, factories would usually switch production to making models for the following year.
