1986 Diamond Back

Harry Leary Turbo

RIDER STYLE
Race
1986 Diamond Back harry-leary-turbo BMX Catalogue

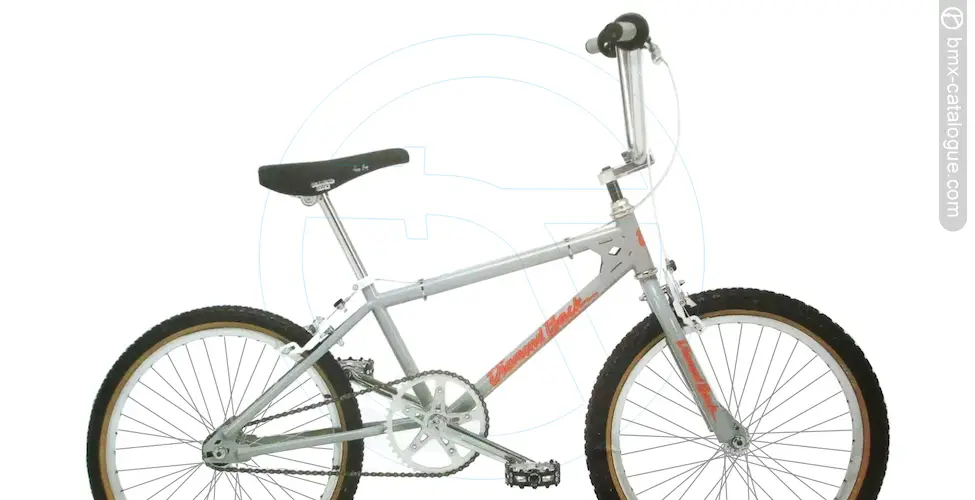

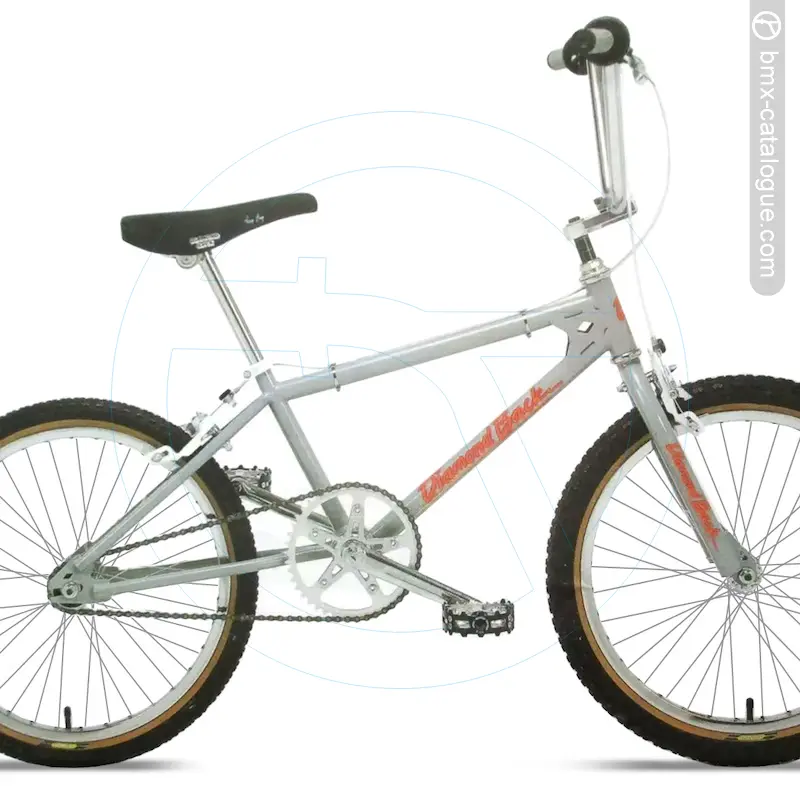

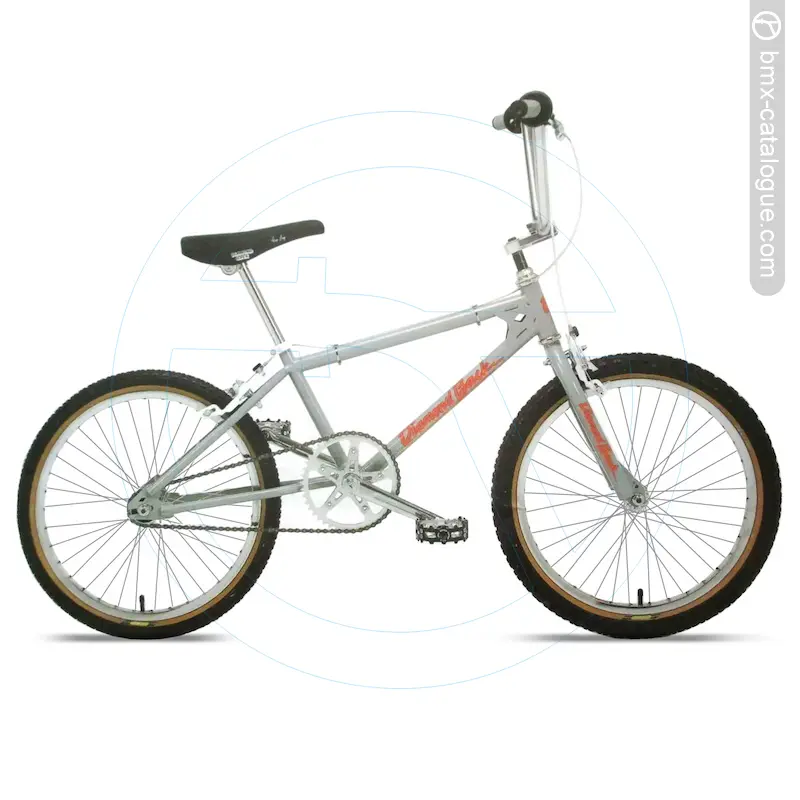

The 1986 Harry Leary Turbo. The all new Turbo, named for Turbo Havry Leary, has been completely redesigned & respec'd for '86. Constructed of 100% aircraft quality 41-30 CR-MO tubing & inert gas heliarc TIG welded into the most advanced racing geometry anywhere. The turbo incorporates an array of unique features: Hollow 3-piece chromoly crankset, Dia Compe MX 901 brakes front & rear, Suntour XC-II pedals, sealed bearings, double butted spoke wheels & Comp III tires, special extra long DB pro stem & extra large DB chromoly handlebars. Colors: Grey baked epoxy with special "clear coat" overcoating.

BMX CATALOGUE
All models
Diamond Back 1986 BMX Catalogue Arrow Icon
1986 Diamond Back
Arrow Icon
All 1986 Models
 Arrow Icon
All Years
 1986 Diamond Back harry-leary-turbo BMX Catalogue Arrow Icon
Harry Leary Turbo
 1986 Diamond Back turbo-lite-kit BMX Catalogue Arrow Icon
Turbo Lite Kit
 1986 Diamond Back hot-streak BMX Catalogue Arrow Icon
Hot Streak
 1986 Diamond Back cool-streak BMX Catalogue Arrow Icon
Cool Streak
 1986 Diamond Back super-viper BMX Catalogue Arrow Icon
Super Viper
 1986 Diamond Back viper-fw BMX Catalogue Arrow Icon
Viper FW
 1986 Diamond Back viper-cb BMX Catalogue Arrow Icon
Viper CB
 1986 Diamond Back mini-viper BMX Catalogue Arrow Icon
Mini Viper
Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
100% CR-MO
100% CR-MO
DB CR-MO Race
Araya 7L 36H
Suzue SB
Suntour XC-2
DiaCompe MX901
DiaCompe MX901
Tech 5
DB Turbo Suede
Oakley B-1B
DB Alloy Pro
Comp 3 Skinwall
DB 175 3pc 44T

Headset Size

1"

Seatpost Size

22.2mm

Top Tube Size

Unknown

Original Colours

grey
Serial Number Icon
Serial Number
Format

F5X000000 F6Y000000
Made in Taiwan.
F stands for Fairly factory. Second digit indicates year of production (1985 or 1986). X in the serial indicates production Month (5 to 12 - May to Dec). Y in the serial indicates production Month (1 to 4 - Jan to April).

Bikes made in Taiwan usually had an 8 month production and shipping timeline before they were sold in bike shops around the world. In May of any year, factories would usually switch production to making models for the following year.
