1988 Diamond Back

Strike Zone Woody Itson

RIDER STYLE
Freestyle
1988 Diamond Back strike-zone-mike-dominguez BMX Catalogue

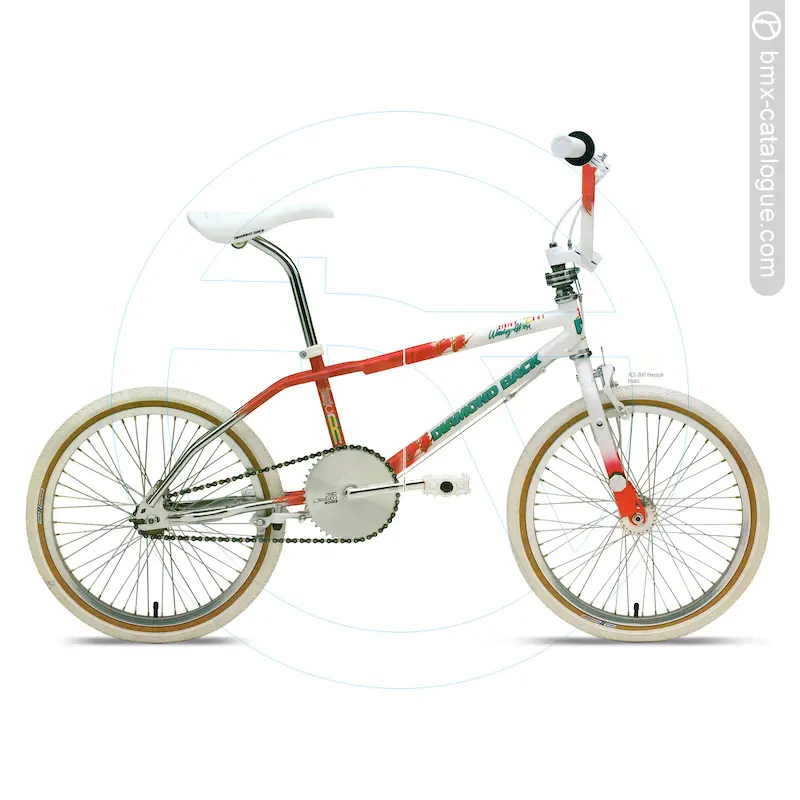

Of the three new models in the 1988 Diamond Back line up, the Woody Itson Strike Zone is the ultimate. This bike has all of Woody's favorite personal choices in components. Nothing was held back. All new frame platforms, foot peg positions, and componentry make it a freestyler's dream come true. 48 spoke alloy wheels with Suntour Free Coaster rear give the bike a light feel, while not sacrificing a thing in strength. ACS Pro Rotor and rotor stem improve handling While the ACS Gripper Tangent braking system does all the stopping. Toga rounds out the rest of this bike's components. Colors- White/Advanced Red/Chrome.

BMX CATALOGUE
All models
Diamond Back 1988 BMX Catalogue Arrow Icon
1988 Diamond Back
Arrow Icon
All 1988 Models
 Arrow Icon
All Years
 1988 Diamond Back strike-zone-mike-dominguez BMX Catalogue Arrow Icon
Strike Zone Mike Dominguez
 1988 Diamond Back strike-zone-woody-itson BMX Catalogue Arrow Icon
Strike Zone Woody Itson
 1988 Diamond Back hot-streak BMX Catalogue Arrow Icon
Hot Streak
 1988 Diamond Back striker BMX Catalogue Arrow Icon
Striker
 1988 Diamond Back reactor BMX Catalogue Arrow Icon
Reactor
 1988 Diamond Back silver-streak BMX Catalogue Arrow Icon
Silver Streak
 1988 Diamond Back viper BMX Catalogue Arrow Icon
Viper
 1988 Diamond Back mini-viper BMX Catalogue Arrow Icon
Mini Viper
Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
100% CR-MO
CR-MO w Peg Boss
100% CR-MO
DB 48H Alloy
Suzue Alloy Hi
Alloy Beartrap
ACS 860 FS
ACS2090 Gripper U
ACS 6770
DB Dominator Type
DB Mushroom
ACS Rotor Stem
Tioga Comp ST
TGA 180 1pc 44T

Headset Size

1"

Seatpost Size

22.2mm

Top Tube Size

Unknown

Original Colours

red
Serial Number Icon
Serial Number
Format

F7X000000 F8Y000000
Made in Taiwan.
F stands for Fairly factory. Second digit indicates year of production (1987 or 1988). X in the serial indicates production Month (5 to 12 - May to Dec). Y in the serial indicates production Month (1 to 4 - Jan to April).

Bikes made in Taiwan usually had an 8 month production and shipping timeline before they were sold in bike shops around the world. In May of any year, factories would usually switch production to making models for the following year.
