1988 Diamond Back

Viper

RIDER STYLE
Race

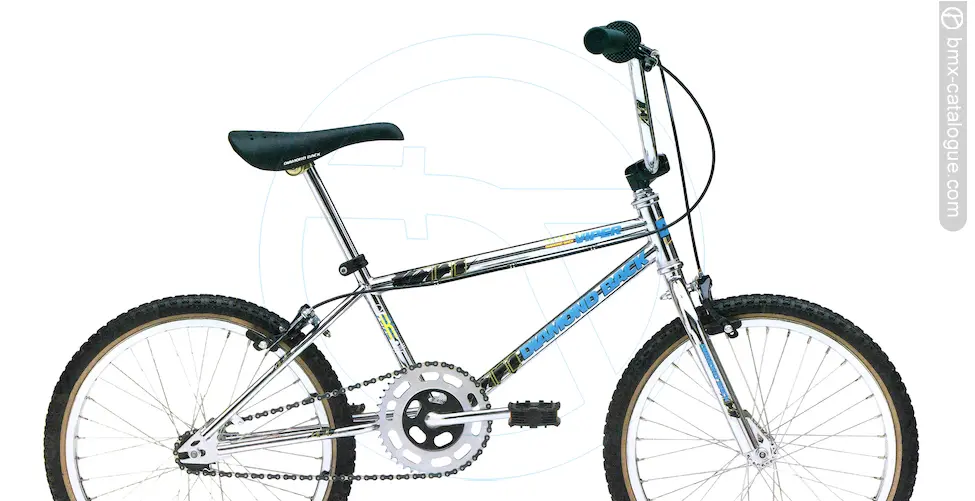

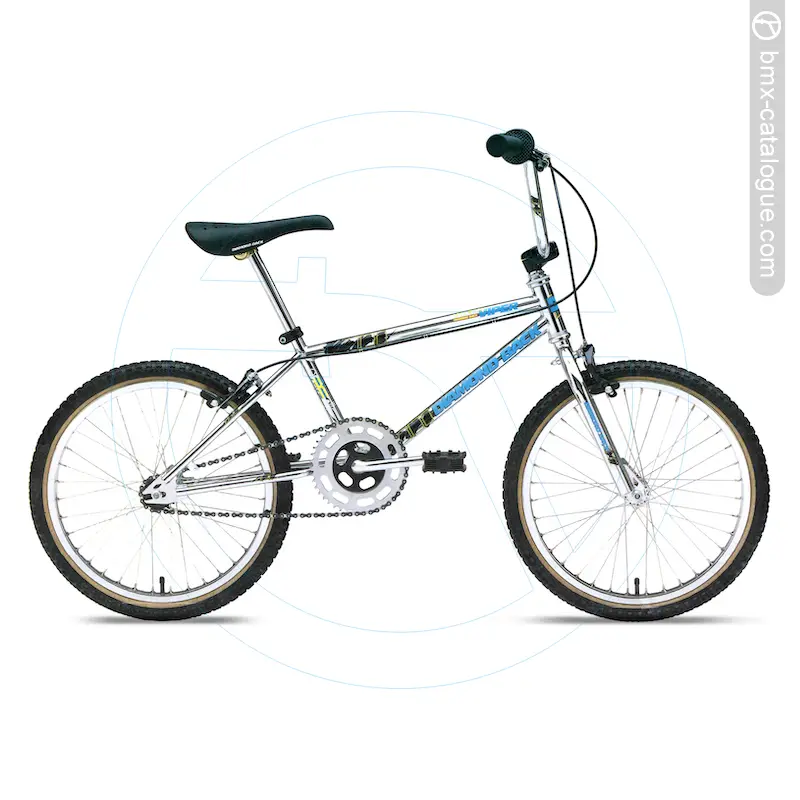

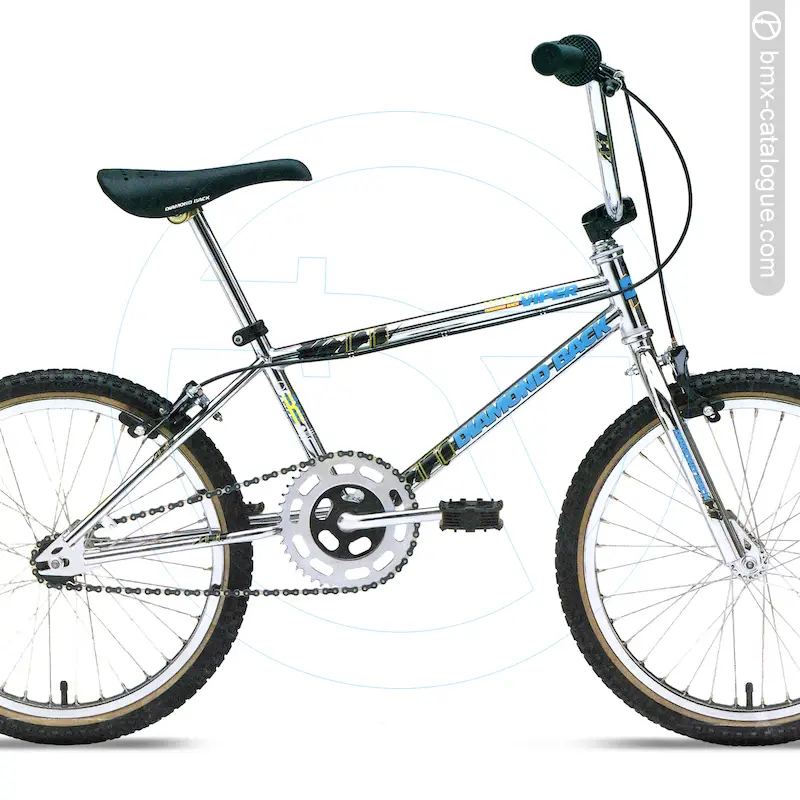

1988 Diamond Back viper BMX Catalogue

With the combined handling characteristics of the DB Reactor and Strike Zone built into the 1988 Viper Freewheel and Coaster Brake, we've made these bikes the best all around bikes in Diamond Back's line up for 1988, plus a spec sheet that reads like a factory racing bike: ACS Tangent series 860 brakes - front and rear. 20 x1.75 Comp III skinwall racing tire, alloy chromoly stem, and the list goes on. You would think this bike would sell for twice what it does. F/W Colors - Chrome/Black/Chrome, White/Reflex Blue/White, Red/Black/White. C/B Colors - Chrome. Yellow/Black/White, White/Red/White.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
CR-MO/HI-TEN
HI-TEN
DB 2pc
Steel 36H
Steel/Coaster
Resin Beartrap
ACS 860
ACS 860/ACS 900
ACS 6170/Tech 3
Dominator Type
DB Mushroom
DB Alloy
Comp 3 Type
DB 165 1pc 44T

Headset Size

1"

Seatpost Size

22.2mm

Top Tube Size

Unknown

Original Colours

chrome white red yellow
Serial Number Icon
Serial Number
Format

F6X000000 F7Y000000
Made in Taiwan.
F stands for Fairly factory. Second digit indicates year of production (1986 or 1987). X in the serial indicates production Month (5 to 12 - May to Dec). Y in the serial indicates production Month (1 to 4 - Jan to April).

Bikes made in Taiwan usually had an 8 month production and shipping timeline before they were sold in bike shops around the world. In May of any year, factories would usually switch production to making models for the following year.
