1997 Haro

Elite Pro XL

RIDER STYLE
Elite

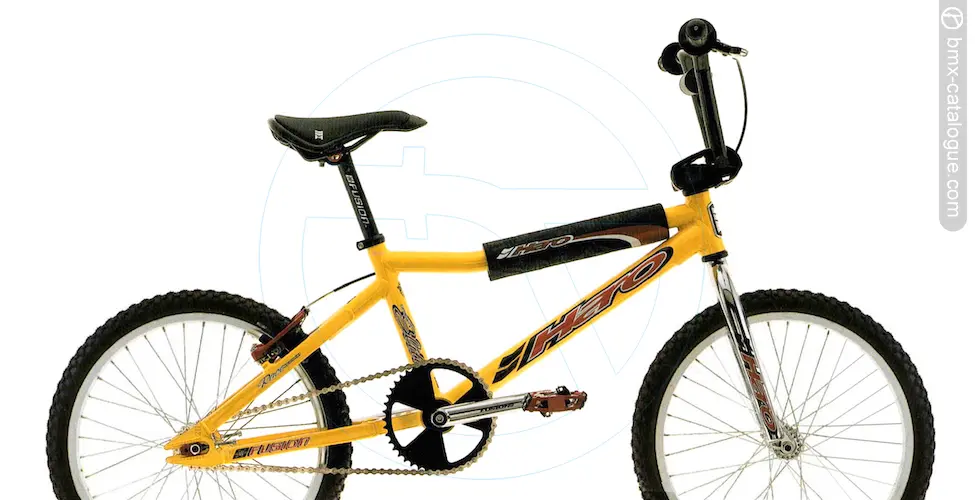

1997 Haro elite-pro-xl BMX Catalogue

The 1997 Haro Elite Pro XL is for the fanatic. National points chaser. Probably the last bike he'll buy before getting a factory ride. Series 7005 Aluminum V-Bar frame. CRMO threadless tapered fork. Shimano DX V-brakes. Shimano DX lever. Shimano DX clipless pedal. Fusion SpeedRacer 3 degree CRMO bars. Fusion CRMO 180mm 3pc cranks. Araya RB17 CP rims. Suzue sealed hubs/ss spokes.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
7005 V bar
Haro CR-MO
Haro Speedracer
Araya RB17 CP
32H Suzue Sealed
Shimano DX Cless
-
Shimano DX V-Br
Shimano DX
Haro Slantnose
Team Haro Kraton
Fusion USA Clamp On
Holeshot 2
3pc 180 USA/Nuke 44T

Headset Size

1 1/8"

Seatpost Size

Unknown

Top Tube Size

21.5"

Original Colours

yellow
Serial Number Icon
Serial Number
Format

KH6X00000 KH7Y00000
Made in Taiwan.
The first number in the serial indicates year of production (1996 or 1997). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).

Bikes made in Taiwan usually had an 5-8 month production and shipping timeline before they were sold in bike shops around the world. Bikes welded in the later months of the year would normally be made for the following year.
