1997 Haro

Group 1 AL

RIDER STYLE
Group 1
1997 Haro group-1-al BMX Catalogue

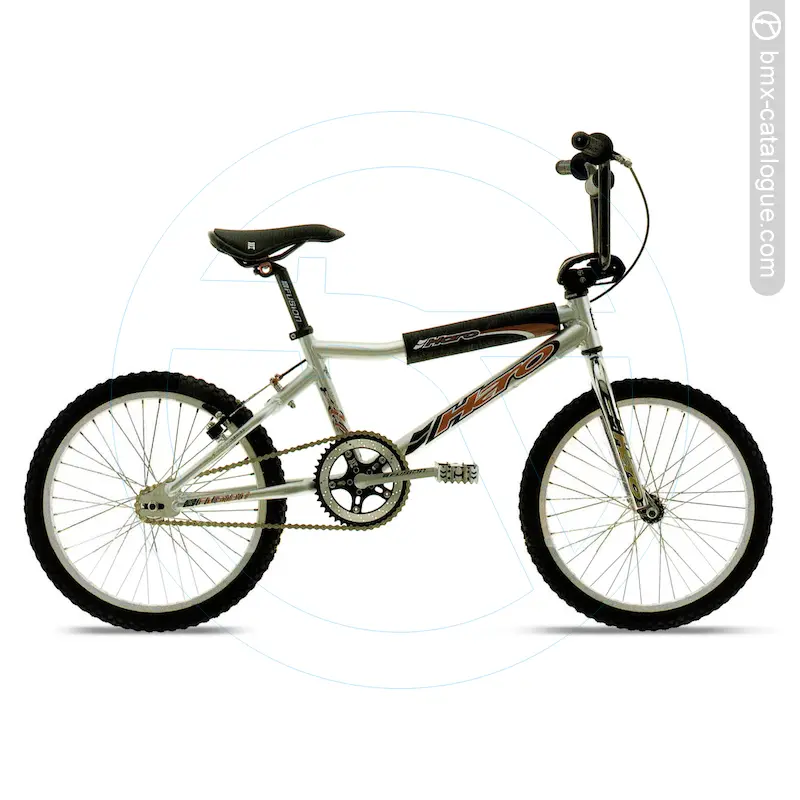

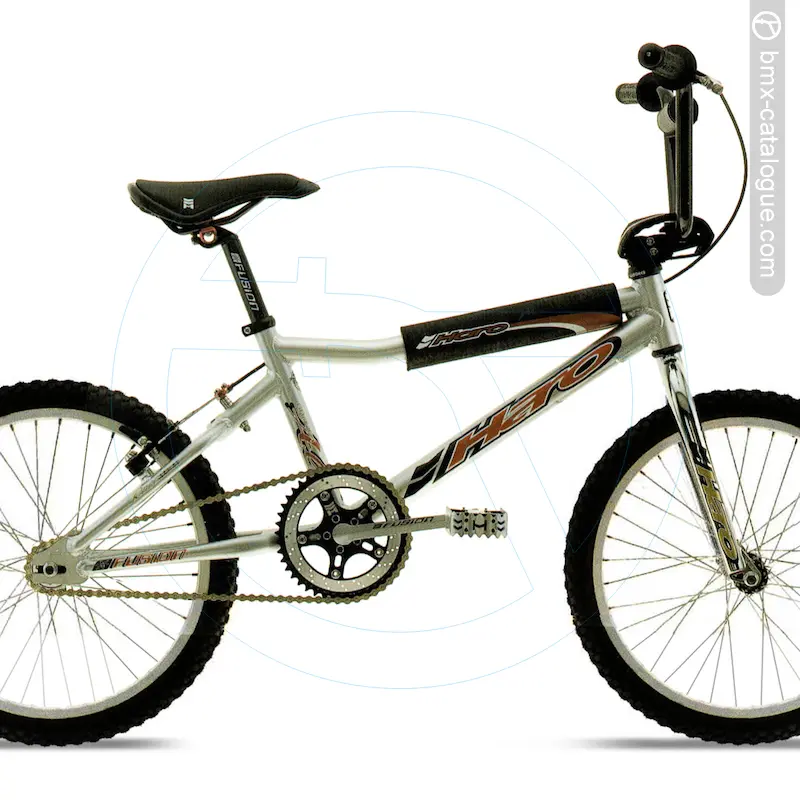

The 1997 Haro Group 1 AL is for the expert level racer who likes big tubes and the responsiveness of an aluminum frame. Group 1 BMX 7000 series aluminum Pro XL V bar frame/Threadless CRMO tapered leg fork. Fusion alloy clamp-on stem. Fusion alloy 2pc 44T RaceDisc. Hex 1pc CRMO 180mm crank. Araya VP20 rims. 3pc padset. ACS 16T freewheel.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
V-Bar 7005
Haro CR-MO Tapered
Haro BMX
Araya VP20
Haro Alloy 36H
Team Haro Alloy
-
Alloy Canti
Fusion Alloy
Haro Slantnose
Haro Team Kraton
Alloy Clamp On
Haro Holeshot
1pc 180 RaceDisc 44T

Headset Size

1 1/8"

Seatpost Size

Unknown

Top Tube Size

20.75"

Original Colours

silver graphite
Serial Number Icon
Serial Number
Format

KH6X00000 KH7Y00000
Made in Taiwan.
The first number in the serial indicates year of production (1996 or 1997). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).

Bikes made in Taiwan usually had an 5-8 month production and shipping timeline before they were sold in bike shops around the world. Bikes welded in the later months of the year would normally be made for the following year.
