1997 Haro

Ultra Frame

RIDER STYLE
Freestyle

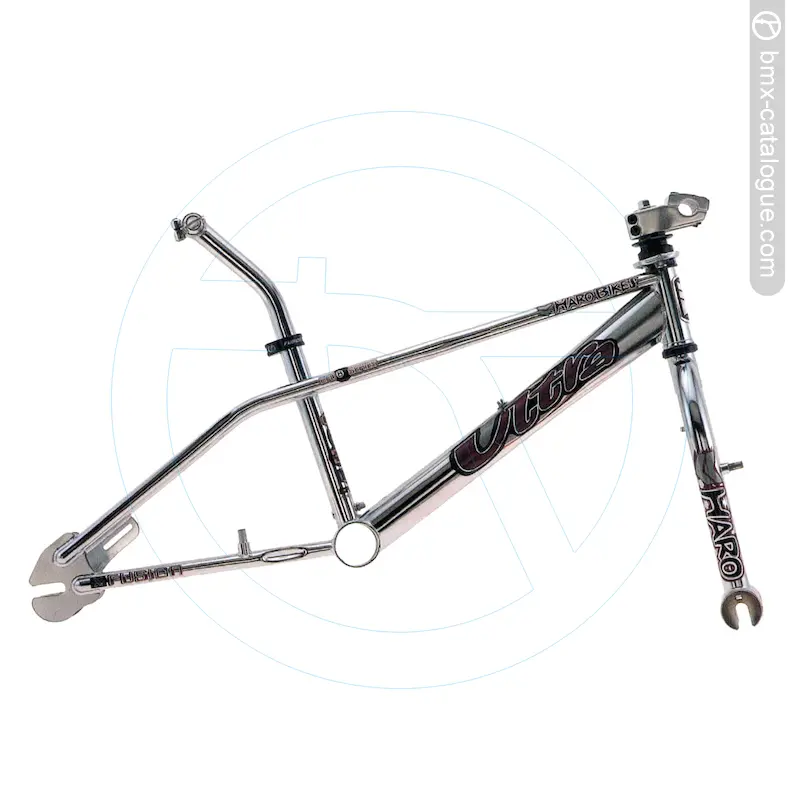

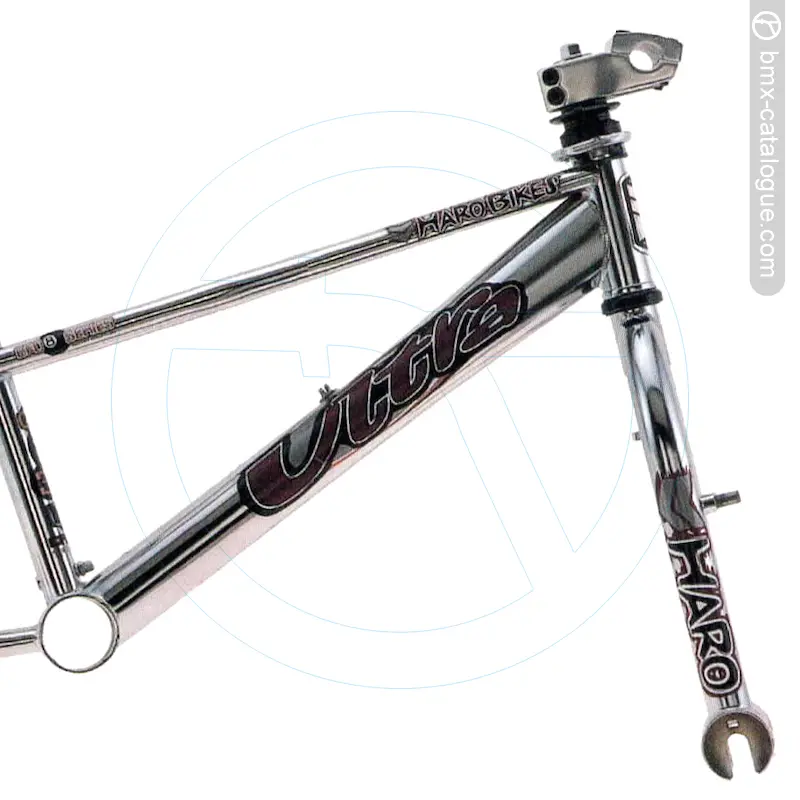

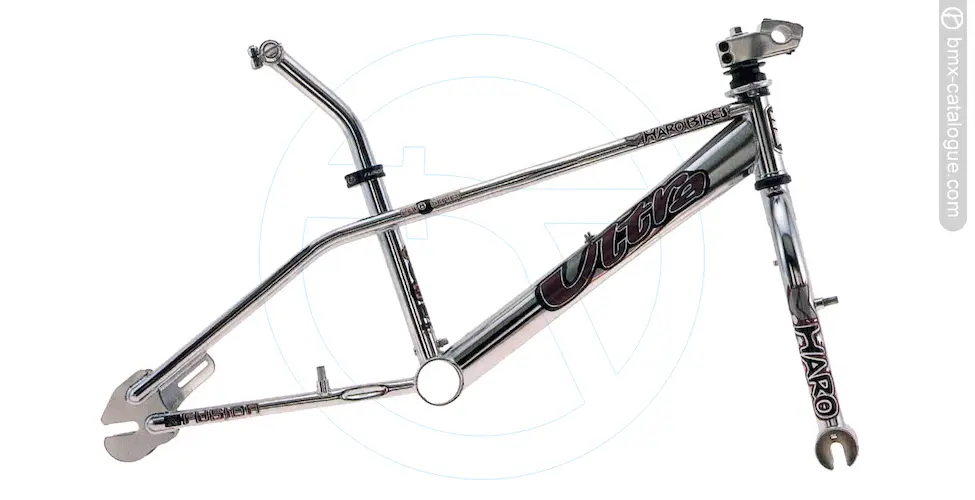

1997 Haro ultra-frame BMX Catalogue

2" downtube 100% CRMO MegaTube frame. Oversize 1.125" Steerer Zero Offset MegaFork w/bosses for ABS (Aerial Braking System). Accepts GroundRound alloy axle extenders. Designed for flatland use. Rear dropout accepts free-coaster hub. Rear 990 U-Brake mounts. SST ORYG cable detangler. Dia-Compe headset. Fusion CRMO Seatpost. Seatclamp.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
CR-MO MegaTube
CR-MO ZeroMegaFork
-
-
-
-
-
-
-
-
-
-
-
-

Headset Size

1 1/8"

Seatpost Size

25.4

Top Tube Size

18.5"

Original Colours

chrome
Serial Number Icon
Serial Number
Format

KH6X00000 KH7Y00000
Made in Taiwan.
The first number in the serial indicates year of production (1996 or 1997). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).

Bikes made in Taiwan usually had an 5-8 month production and shipping timeline before they were sold in bike shops around the world. Bikes welded in the later months of the year would normally be made for the following year.
