2002 Haro

Backtrail X1

RIDER STYLE
Dirt/Jump

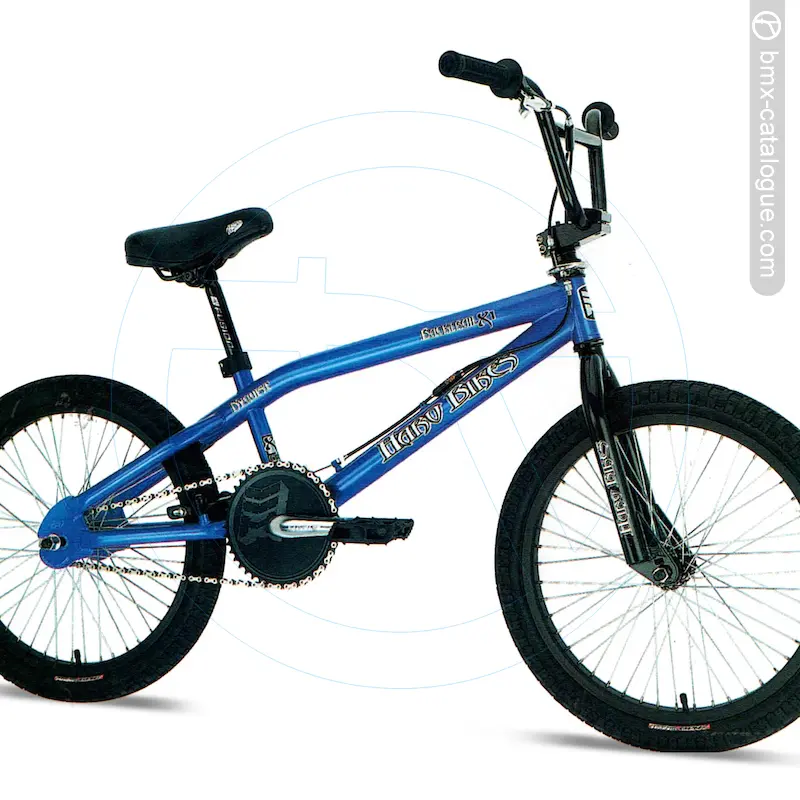

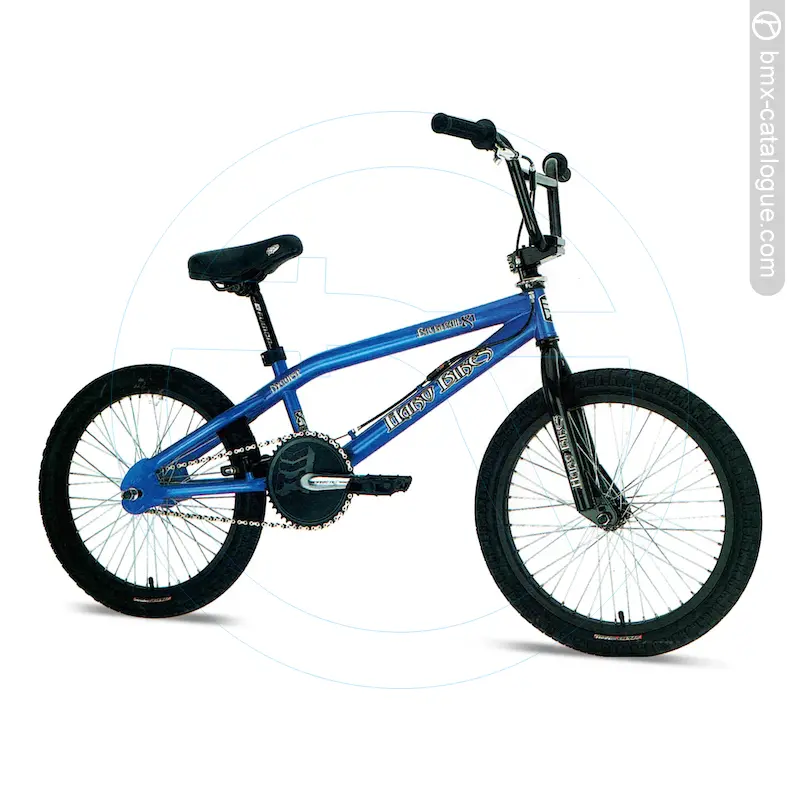

2002 Haro backtrail-x1 BMX Catalogue

The massive tubes and quality construction of the 2002 Haro Backtrail X1 are sharp contrast to its wimpy little price tag. Resizes for 2002 to better fit bigger riders. Straight Shooter fork with Cromo steerer. Tektro alloy U brakes. Catapult tyres. Oversize threadless Aheadset. Harro Landing strip saddle.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
CR-MO Seat Tube
Straight Shooter
Slim Bars
Alex 303 48H
Oversized 14mm Axle
Small Block Resin
-
Tektro Alloy U Brake
Tektro Al w R/Adjust
New Landing Strip
Haro Multi Grip
Fusion Clamp On
Catapult 2.25/2.1
MegaCrank 1pc 175 44T

Headset Size

1 1/8"

Seatpost Size

25.4mm

Top Tube Size

20.3"

Original Colours

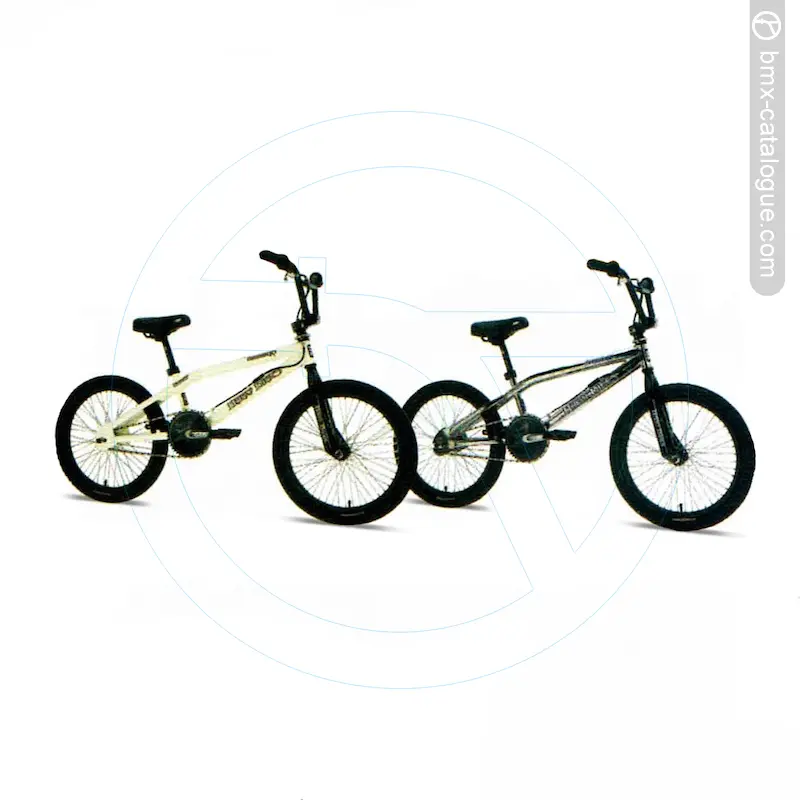

blue off-white chrome
Serial Number Icon
Serial Number
Format

B1S1X00000 B1S2Y00000
Made in Taiwan.
Fourth digit in the serial indicates year of production (2001 or 2002). X in the example above indicates production Month (E to L - May to Dec) . Y in the example above indicates production Month (A to E - Jan to May). B1 in the example above indicates Backtrail X1.

Bikes made in Taiwan usually had an 6-8 month production and shipping timeline before they were sold in bike shops around the world. Around April/May of any year, factories would usually switch production to making models for the following year.
