2002 Haro

Backtrail X24

RIDER STYLE
Dirt/Jump
2002 Haro backtrail-x24 BMX Catalogue

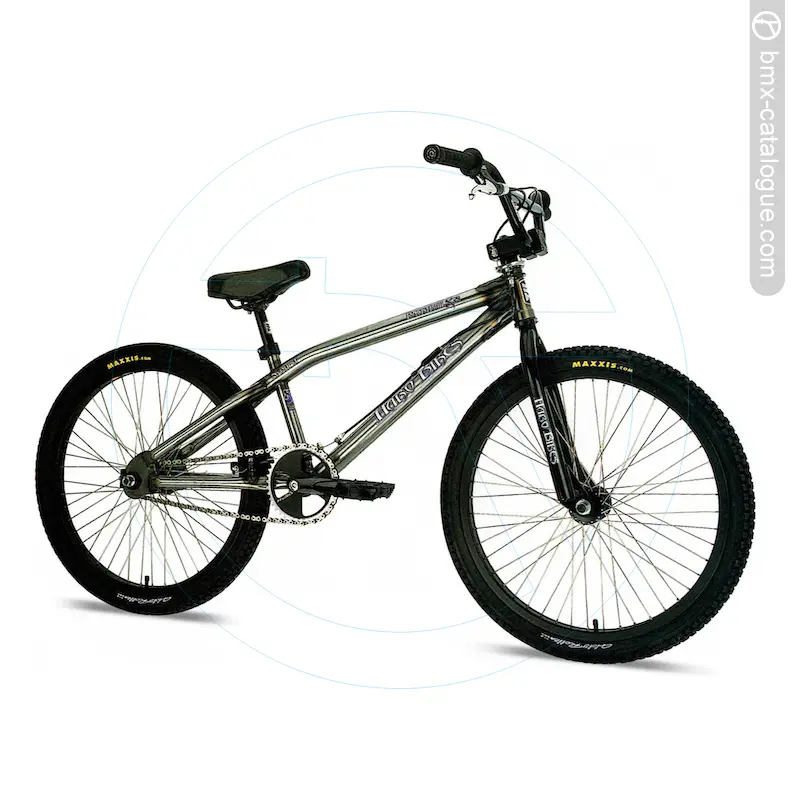

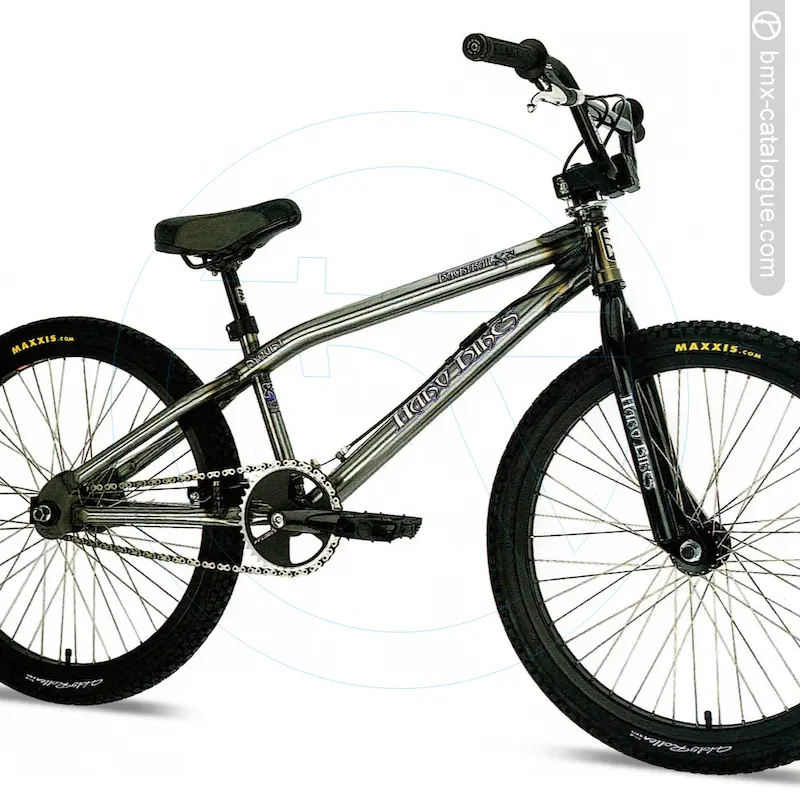

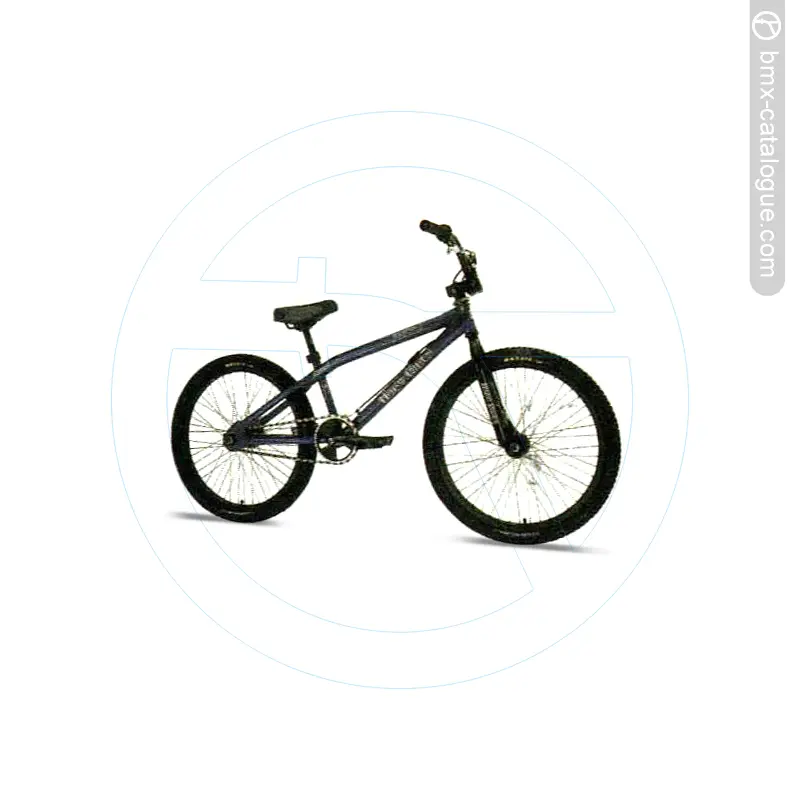

The first of its kind, and still blazing new trails. Stretch out and go big on the 2002 Backtrail X24 cruiser. Full Cromo frame with 6mm thick Cromo dropouts. Sledgehammer 2K Cruiser Cromo bar. Haro fat hubs with 14mm Cromo axles. Maxxis Holy Roller tyres. Haro alloy 40T ring. ACS claws 17T cromo freewheel.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
Cruiser Full CR-MO
CR-MO Straight Shooter
CR-MO Sledgehammer 2KCr
Alex MX22 48H
Fathubs 14mm Axles
Small Block Alloy
-
Tektro FX15 Linear
Odyssey Modulever
New Landing Strip
Haro Multi Grip
Big Block Freestyle
Maxxis HolyRoller 24.195
CR-MO 3pc 175 40T

Headset Size

1 1/8"

Seatpost Size

25.4mm

Top Tube Size

21.7"

Original Colours

off-white raw
Serial Number Icon
Serial Number
Format

B24S1X00000 B24S2Y00000
Made in Taiwan.
Fifth digit in the serial indicates year of production (2001 or 2002). X in the example above indicates production Month (E to L - May to Dec) . Y in the example above indicates production Month (A to E - Jan to May). B24 in the example above indicates Backtrail X24.

Bikes made in Taiwan usually had an 6-8 month production and shipping timeline before they were sold in bike shops around the world. Around April/May of any year, factories would usually switch production to making models for the following year.
