2002 Haro

Backtrail X3

RIDER STYLE
Dirt/Jump
2002 Haro backtrail-x3 BMX Catalogue

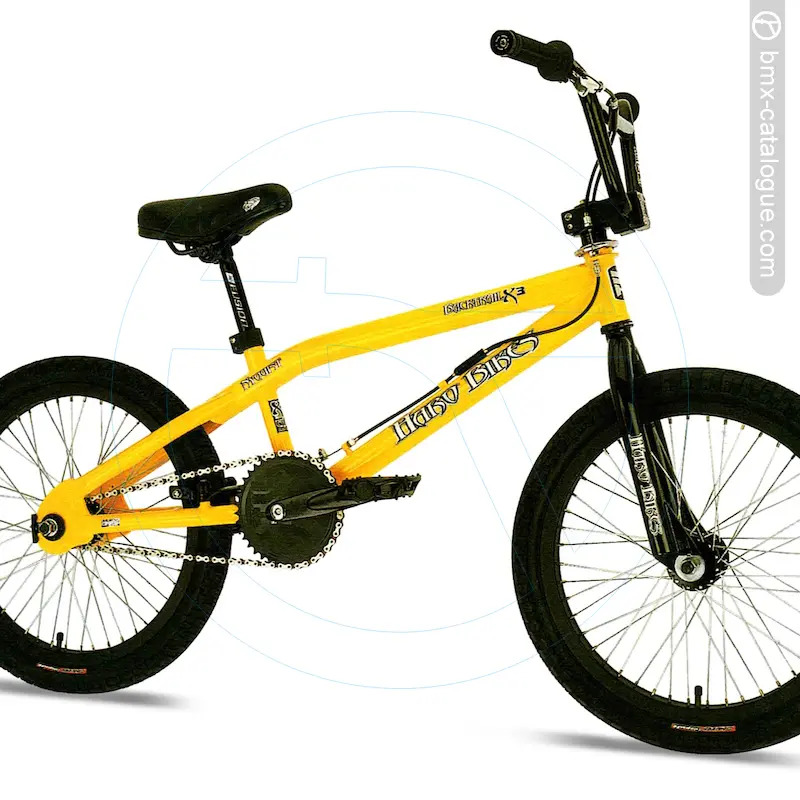

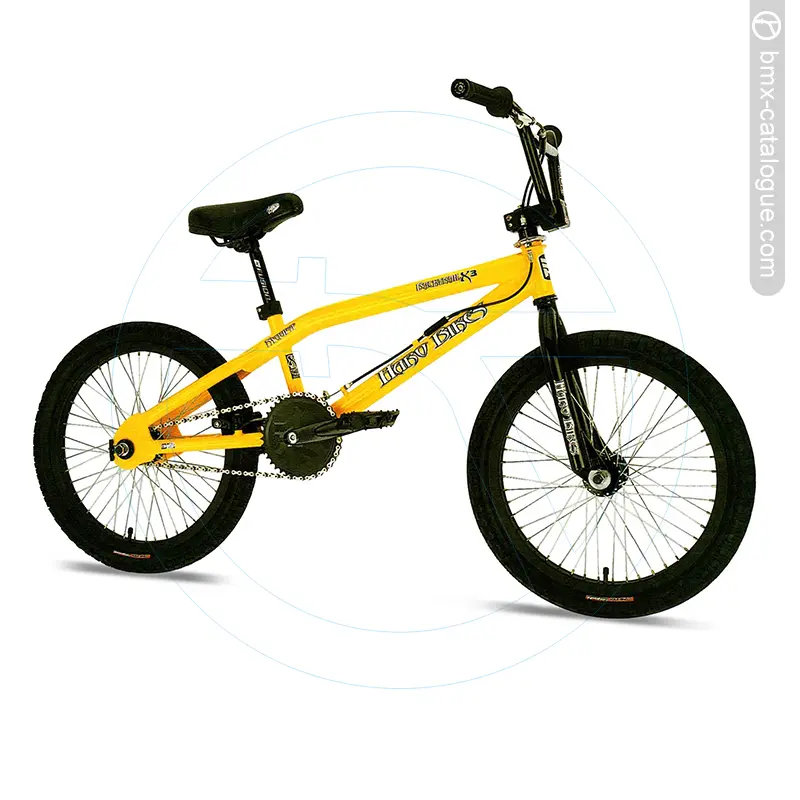

You’ll have a hard time finding a dirt bike with more value and more capabilities than the Backtrail X3. Three tube Cromo Backtrail frame. 39x 4 compact drive gearing. With ACS fat 14T freewheel. Cromo Straight Shooter fork. Full Cromo Slim Bars. Cromo freewheel. Forged Chromo HFC 3-piece cranks.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
CR-MO 3-Tubes
CR-MO Straight Shooter
CR-MO Slim Bars
Alex Y-22 48H
Fathubs 14mm R LSD/RSD
Fusion DX Alloy
-
Tektro Alloy U Brake
Tektro Al w R/Adjust
New Landing Strip
Haro Multi Grip
Big Block Freestyle
Catapult 2.25/2.1
CR-MO 3pc 180 39T

Headset Size

1 1/8"

Seatpost Size

25.4mm

Top Tube Size

20.3"

Original Colours

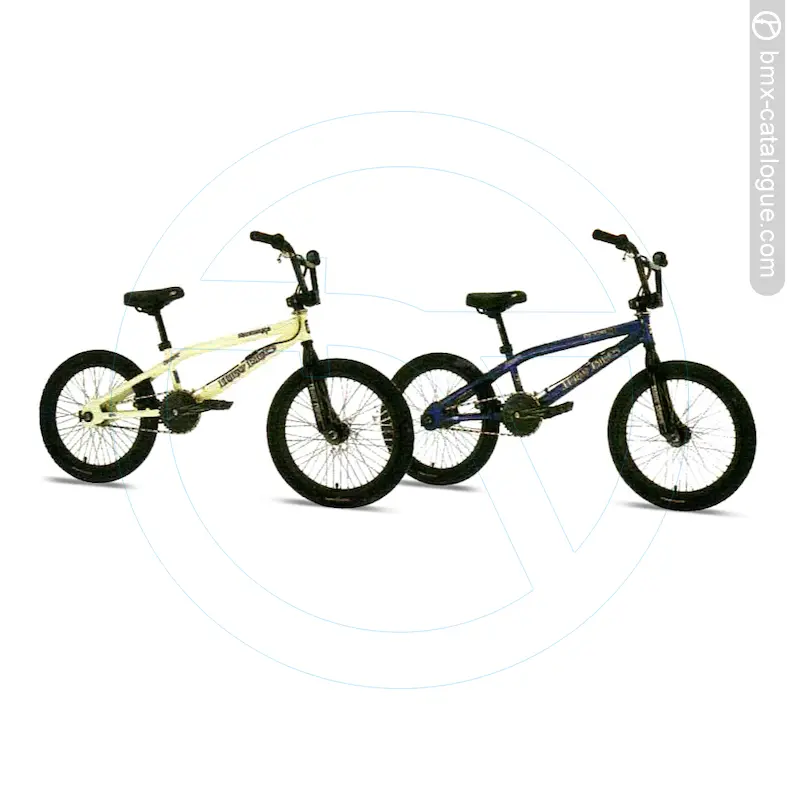

off-white blue yellow
Serial Number Icon
Serial Number
Format

B3S1X00000 B3S2Y00000
Made in Taiwan.
Fourth digit in the serial indicates year of production (2001 or 2002). X in the example above indicates production Month (E to L - May to Dec) . Y in the example above indicates production Month (A to E - Jan to May). B3 in the example above indicates Backtrail X3.

Bikes made in Taiwan usually had an 6-8 month production and shipping timeline before they were sold in bike shops around the world. Around April/May of any year, factories would usually switch production to making models for the following year.
