2002 Haro

Revo.9

RIDER STYLE
Freestyle

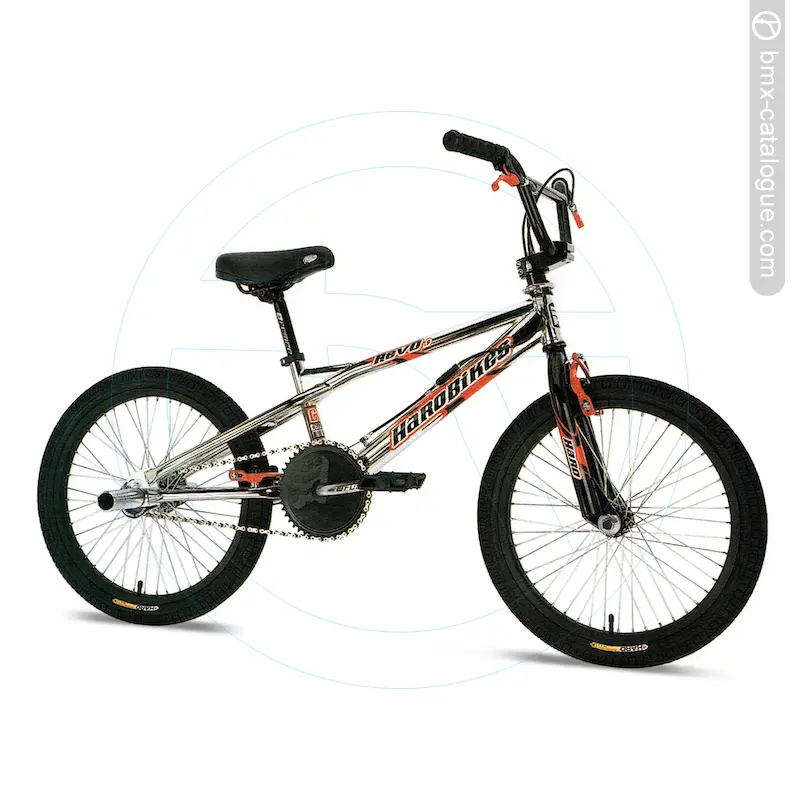

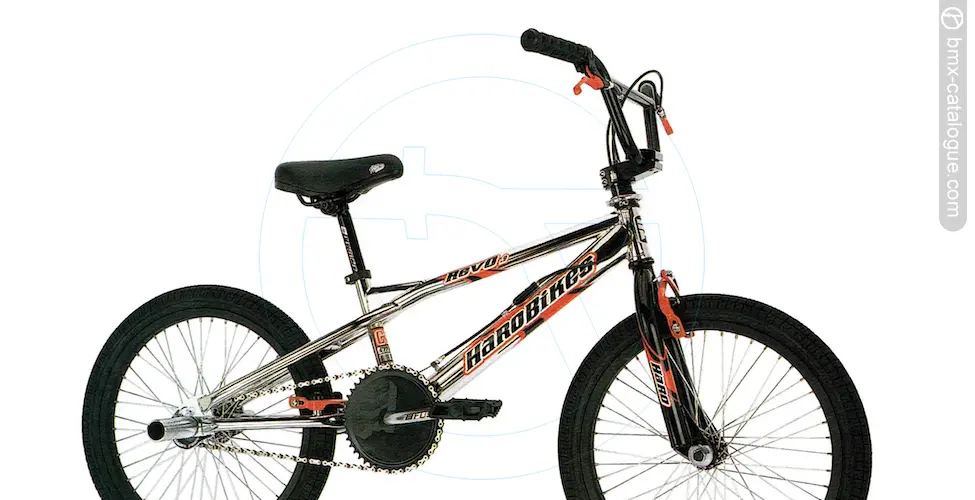

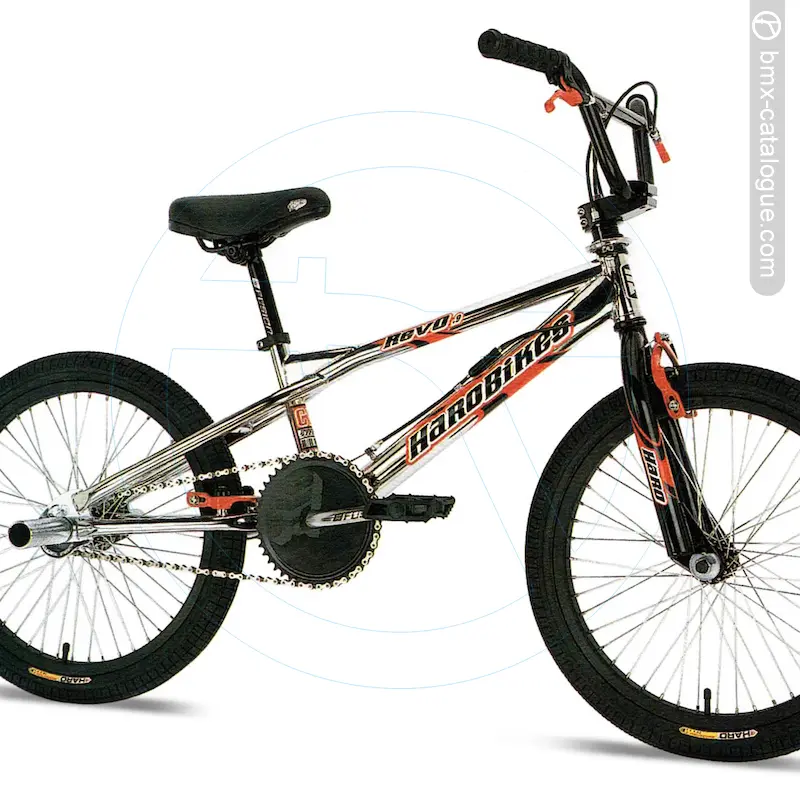

2002 Haro Revo.9 BMX Catalogue

The new 2002 Haro Revo.9 shares the same quality and value as the Revo in a more compact size. The frame, bars and cranks have been proportionally sized for smaller riders. New Revo model design for smaller riders who want 20 inch wheels. Shorter frame with better stand over height. Durable 14mm Axels. Tektro U brakes.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
Shorty CR-MO Seattube
Straight Shooter
X0 Junior Bar
Alex 303 48H
Oversize 14mm Axle
Small Block Resin
Tektro Alloy U Brake
Tektro Alloy U Brake
Tektro Alloy R/Adjust
New Landing Strip
Hevron Kraton
Fusion Clamp On
Multisface 3 2.1
1pc 165 MegaCrank 44T

Headset Size

1 1/8"

Seatpost Size

25.4mm

Top Tube Size

19"

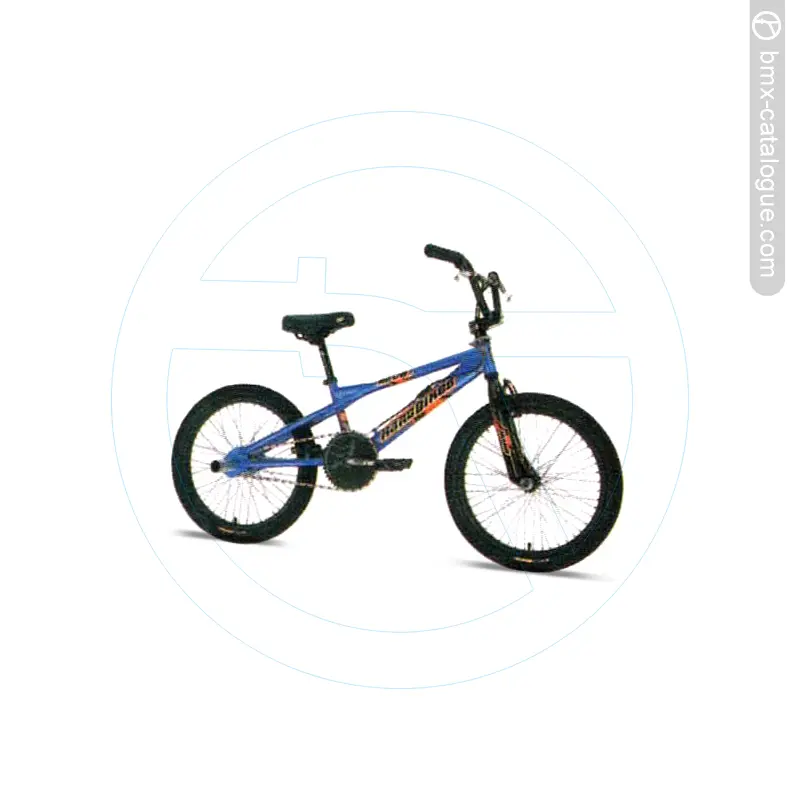

Original Colours

chrome blue
Serial Number Icon
Serial Number
Format

RVW1X00000 RVW2X00000
Made in Taiwan.
Fourth digit in the serial indicates year of production (2001 or 2002). X in the example above indicates production Month (E to L - May to Dec) . Y in the example above indicates production Month (A to E - Jan to May). RV in the serial number indicates model REVO.

Bikes made in Taiwan usually had an 6-8 month production and shipping timeline before they were sold in bike shops around the world. Around April/May of any year, factories would usually switch production to making models for the following year.
