2002 Haro

Revo

RIDER STYLE
Freestyle

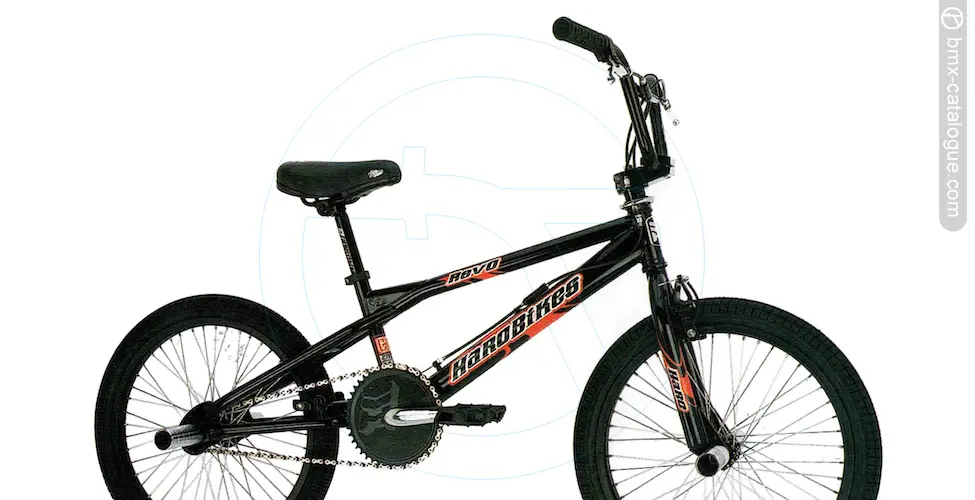

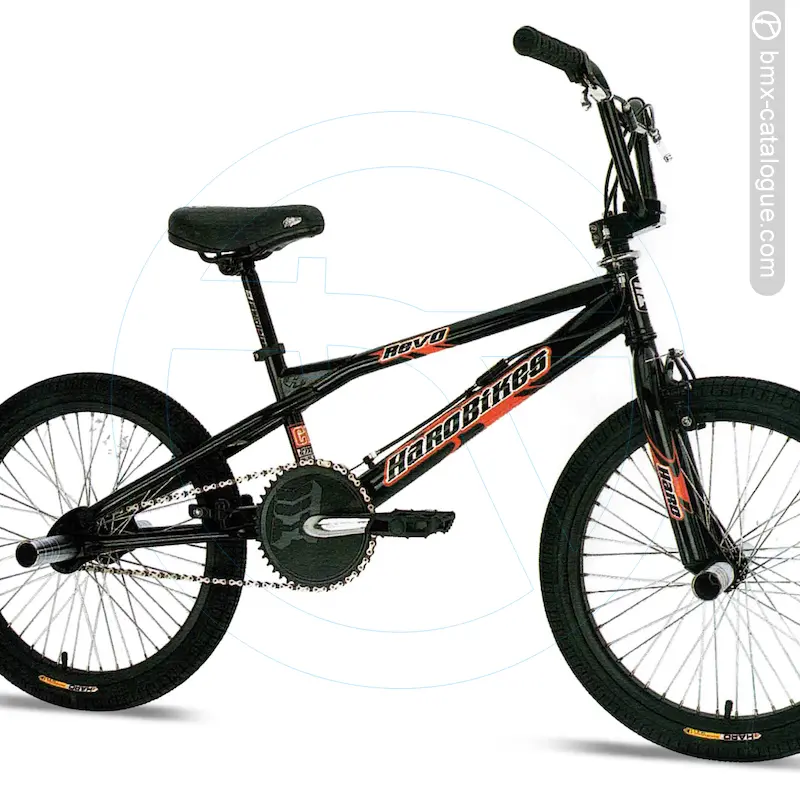

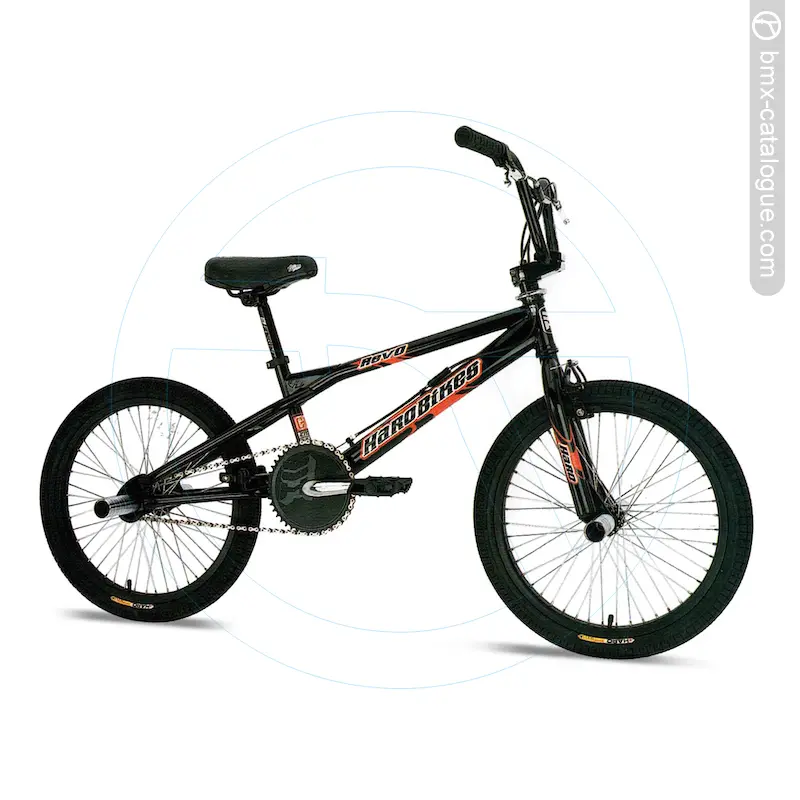

2002 Haro Revo BMX Catalogue

It’s possible to find a so-called freestyle bike for less, but you won’t find the features and durability that make the 2002 Haro Revo a classic. Now available in standard and compact size. Redesign geometry to fit bigger kids. 48 hole wheels with 14mm axles. Slim bar. Tektro U brake. SST ORYG. Alloy 48 hole rims.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
CR-MO Seattube
Straight Shooter
Slim Bar
Alex 303 48H
Oversize 14mm Axle
Small Block Resin
Tektro Alloy U Brake
Tektro Alloy U Brake
Tektro Alloy R/Adjust
New Landing Strip
Hevron Kraton
Fusion Clamp On
Multisface 3 2.1
1pc 175 MegaCrank 44T

Headset Size

1 1/8"

Seatpost Size

25.4mm

Top Tube Size

20.25"

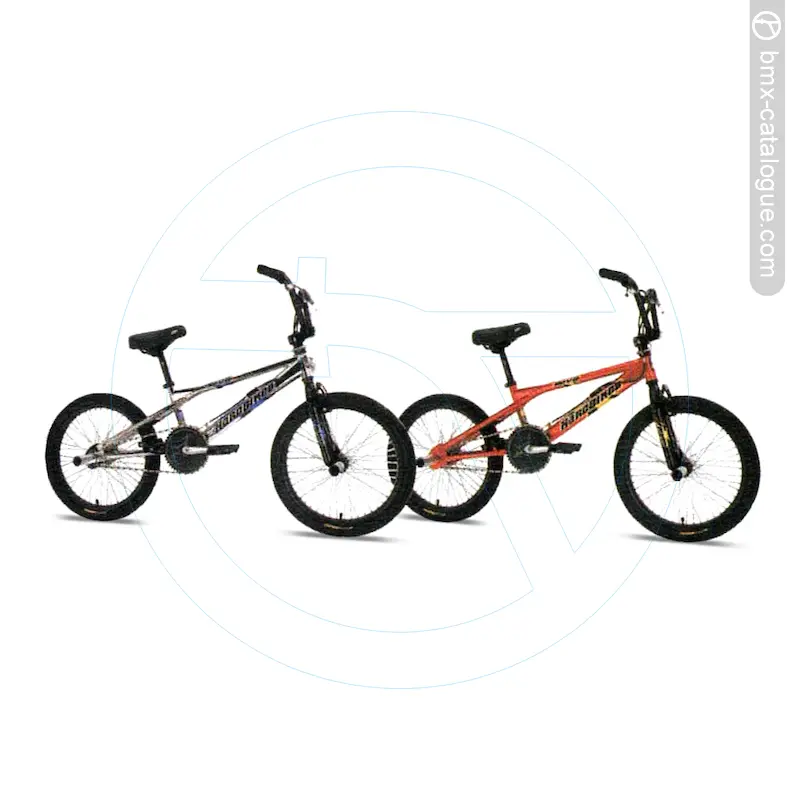

Original Colours

black ruby red
Serial Number Icon
Serial Number
Format

RVW1X00000 RVW2X00000
Made in Taiwan.
Fourth digit in the serial indicates year of production (2001 or 2002). X in the example above indicates production Month (E to L - May to Dec) . Y in the example above indicates production Month (A to E - Jan to May). RV in the serial number indicates model REVO.

Bikes made in Taiwan usually had an 6-8 month production and shipping timeline before they were sold in bike shops around the world. Around April/May of any year, factories would usually switch production to making models for the following year.
