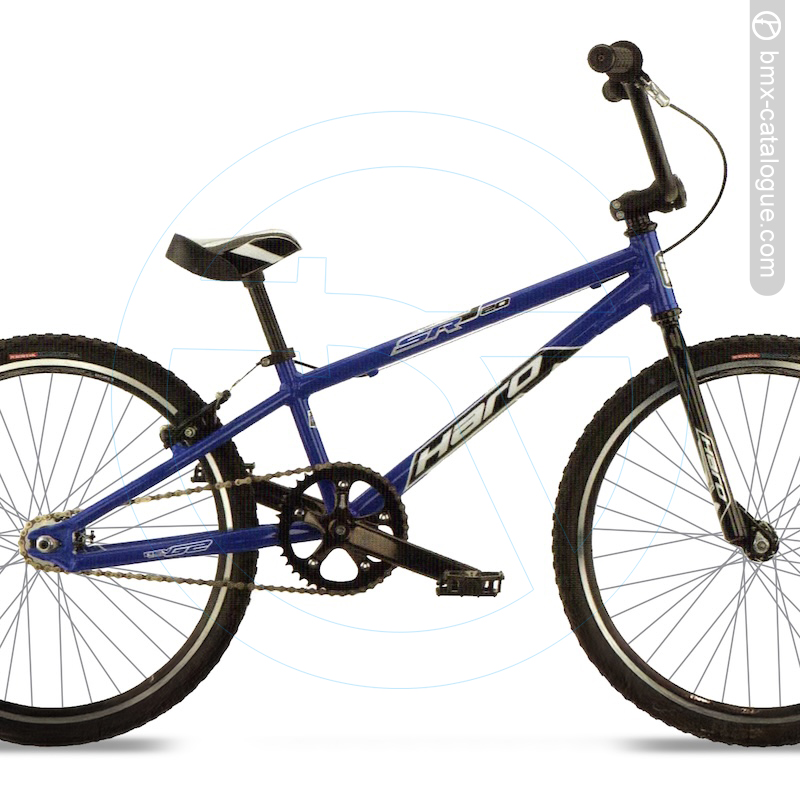

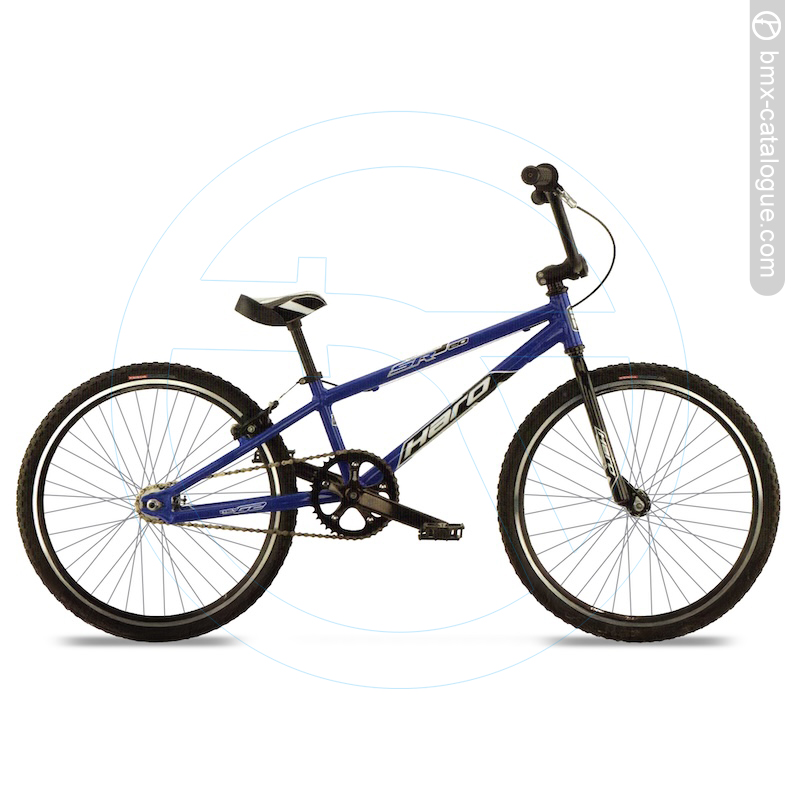

The 2006 Haro Group 1 SR Expert features a new Expert 6061 T6 Alloy Frame w/ 31.8mm Diameter Top Tube. 3-D Forged Dropouts & 3-Pc Padset. Haro Crmo 1" Threadless Fork. Haro Forged Alloy 3-Pc 170mm Crankset w/ Sealed Cartridge BB. Double Wall Rims w/ CNC Sidewalls. Sealed Mech. Hubs w/ Hollow Axle Cassette Rear. New Expert Alloy Handlebar w/ Welded Cross-Bar.
Headset Size
1" TL
Seatpost Size
22.2
Top Tube Size
18.9
Original Colours
| HT˚ | ST˚ | CS | BBH | WB | SO | W |
| 73˚ | 71˚ | 14.25" | 11" | 35.31" | 20.6" | 17.66 |
WB = Wheel Base Length, CS = Chain Stay Length, HT˚ = Head Tube Angle, ST˚ = Seat Tube Angle, BBH = Bottom Bracket Set Height, SO = Stand Over, W = Weight.
