1987 Haro

Master

RIDER STYLE
Flat/Street/Vert

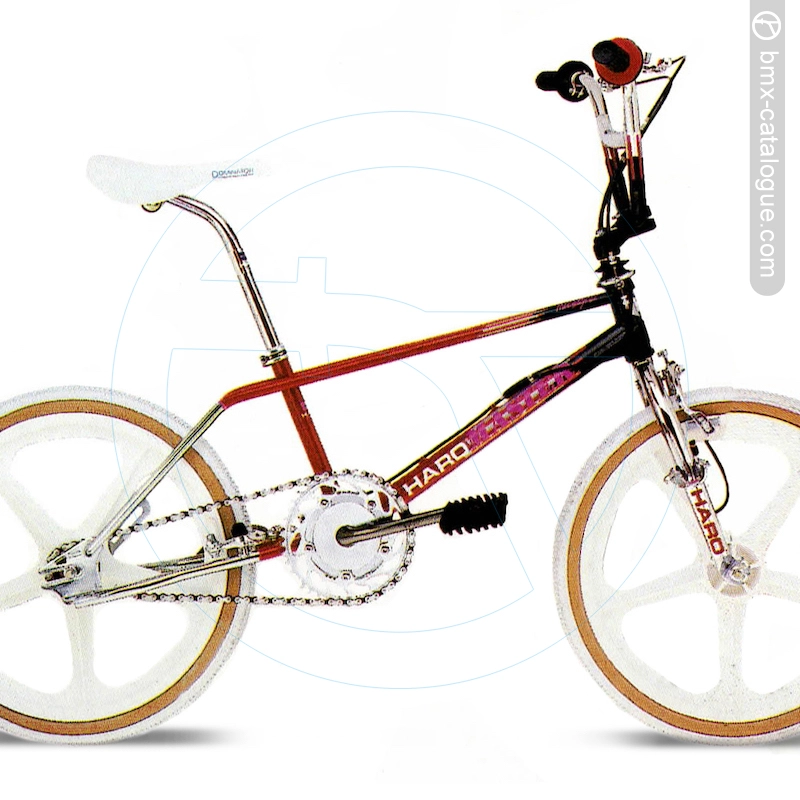

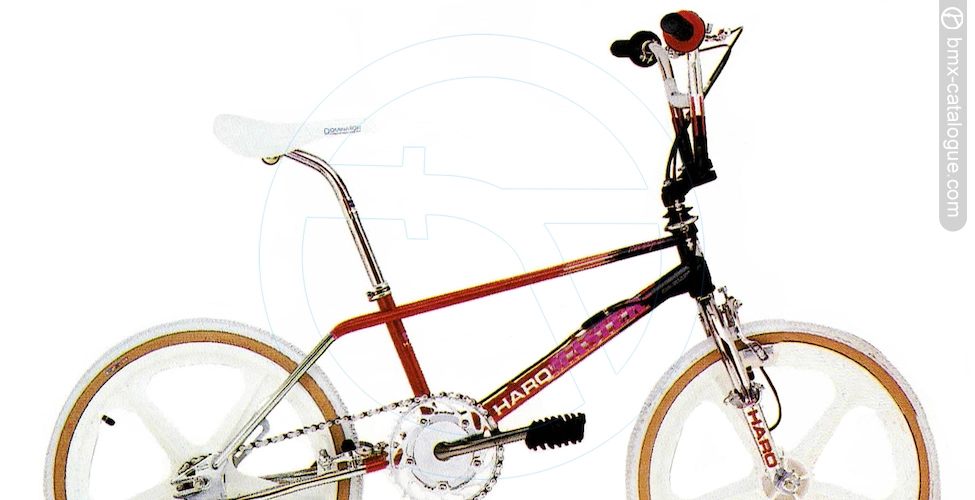

1987 Haro Master BMX Catalogue

The same bike Dennis McCoy rode to his overwhelming conquest of the AFA Masters title in 1986. 100% 4130 chromoly frame and fork featuring specialised flatland geometry, quick, precise handling, 74.5 degree head angle, wrap around head tube gusset, machined BB and heat tube. new narrower twin top tube design for increased leg clearance, oversized rear chainstay platforms w/traction pegs, chainstay mounted Dia-Compe U-brake, pierced seat tube cable routing, brazed on cable guides, tapered seat stays and forks, wrap around folding fork legs, serrated drop outs, triphase finish, updated graphics, chrome stays and forks. Available with either Ukai 48 alloy rims or Skyway Tuff 2 mags.

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
4130 CR-MO
CR-MO w flip steps
Haro CRMO FS
Skyway Tuff 2
Integrated
Victor 863
DiaCompe FS883
DiaCompe AD990
Tech 6
Viscount Dominator
AME Black
Haro CR-MO shaft
Freestyle Skinwall
Anlun CRMO 175 44T

Headset Size

1"

Seatpost Size

22.2mm

Top Tube Size

Unknown

Original Colours

chrome red yellow
Serial Number Icon
Serial Number
Format

86XX0000 87YY0000
Made in Taiwan.
Here's how to check your Haro BMX serial number. First 2 numbers in the serial indicates year of production (1986 or 1987). Numbers indicated by XX in the serial are Month (05 - 12 - May to Dec). YY in the serial indicates production Month (01 to 04 - Jan to April).

Bikes made in Taiwan usually had an 8 month production and shipping timeline before they were sold in bike shops around the world. In May of any year, factories would usually switch production to making models for the following year.
